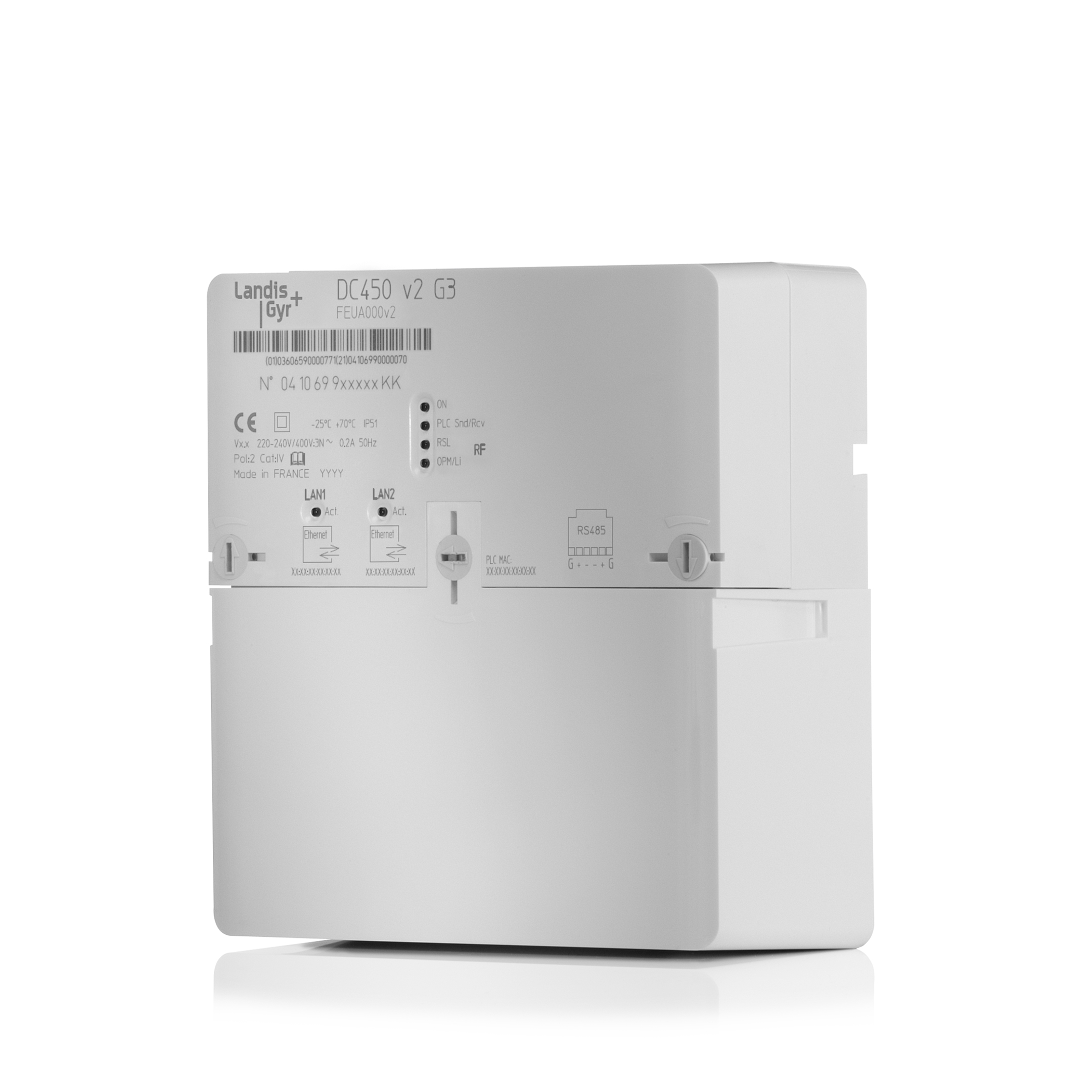

DC450
The ultimate solution for efficient metering data collection and control. The Landis+Gyr DC450 is a new generation intelligent data concentrator for large scale meter reading and controlling applications. The DC450 supports a wide variety of communication interfaces between local meter parks and backend support systems to meet the needs of the environment. Läs mer
Description:
The ultimate solution for efficient metering data collection and control
The Landis+Gyr DC450 is a new generation intelligent data concentrator for large scale meter reading and controlling applications. The DC450 supports a wide variety of communication interfaces between local meter parks and backend support systems to meet the needs of the environment. Data exchange is secured through IDIS (Interoperable Device Interface Specifications) compliance over G3 PLC or PLAN+ (Power Line Automation Network) networks and TLS (Transport Layer Security) protocol for all other types of communication. Modular hardware and software design allows flexible adaptation of functions for future requirements.
Simple “plug & play” installation of preconfigured devices results in considerable time and cost savings. Thanks to new topology view, utility engineers can significantly improve their field “clean-up” operations during the rollout and troubleshooting phase.
Egenskaper
- Pluggable modem for WAN communications
- Supports G3-PLC Cenelec A band (5-95 kHz) and G3-500 band (150-500 kHz) or PLAN+ Cenelec A band
- Integrated WEB server for local and remote access to the DC450 data concentrator
- Data push concept with individual reading and push profiles
- Enables meter firmware update on the field
- DLMS/COSEM and IDIS interoperability
- IPv6 compliant
- 2 Ethernet ports
- RS-485 interface
Variations
- G3-PLC, Cenelec A BAND (5-95KhZ) and G3-500 (150-500kHz)
- PLAN+ PLC, Cenelec A band
- Ethernet
- WAN communication over 2G/3G/4G
- Java
Tillgänglig
- Europa, Mellanöstern och Afrika
